Slitting and Cut to Length Line

Slitting and Cut to Length Line

1. Weight of steel coils can reach up to about 40 Tons, in this case, the heavy duty uncoiled roller is necessary to load so heavy coils…

+8618112758839
Share:
Details

Feature:

1. Weight of steel coils can reach up to about 40 Tons, in this case, the heavy duty uncoiled roller is necessary to load so heavy coils.

2. According to functions & solidity request of each steel slitter unit, we adopt suitable structure and use proper and enough material to make each steel coil slitting line unit.

3. Good material and precise sizes of disc knives, spacers and rubber rings on slitting shaft for our steel slitting machine can make sure little burrs, little cambers, no stickiness to knives.

4. To change disc knives fast, double steel slitter can be chosen. When one steel slitting machine is working, workers can install knives on the other slitter, then just exchange locations of two steel coil slitting line to continue work.

Parameter:

NameUnitOptional range
Plate thicknessmm1-6, 2-8, 3-12, 4-16, 5-20, 6-25
Coil widthmm1000, 1250, 1500, 2000, 2500
Uncoiler load capacityt15, 20, 25, 30, 35, 40
Slitting precisionmm±1.0
Line velocity of cut to length linem/min0-120
Total powerKW500-800

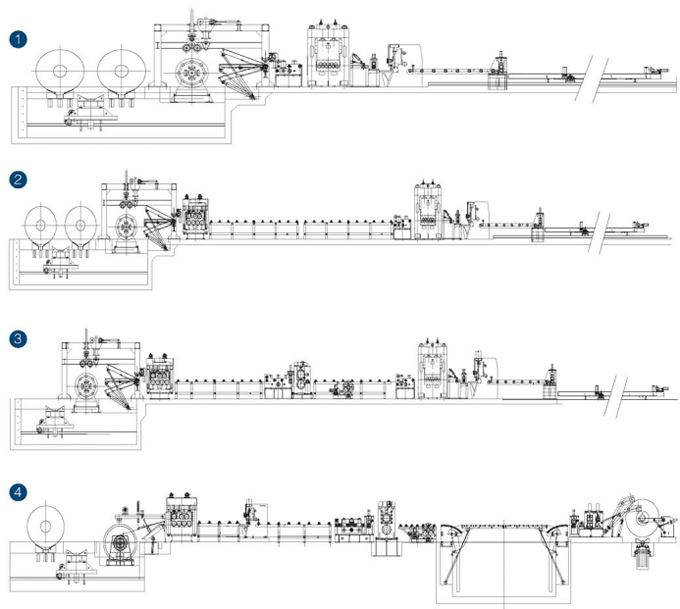

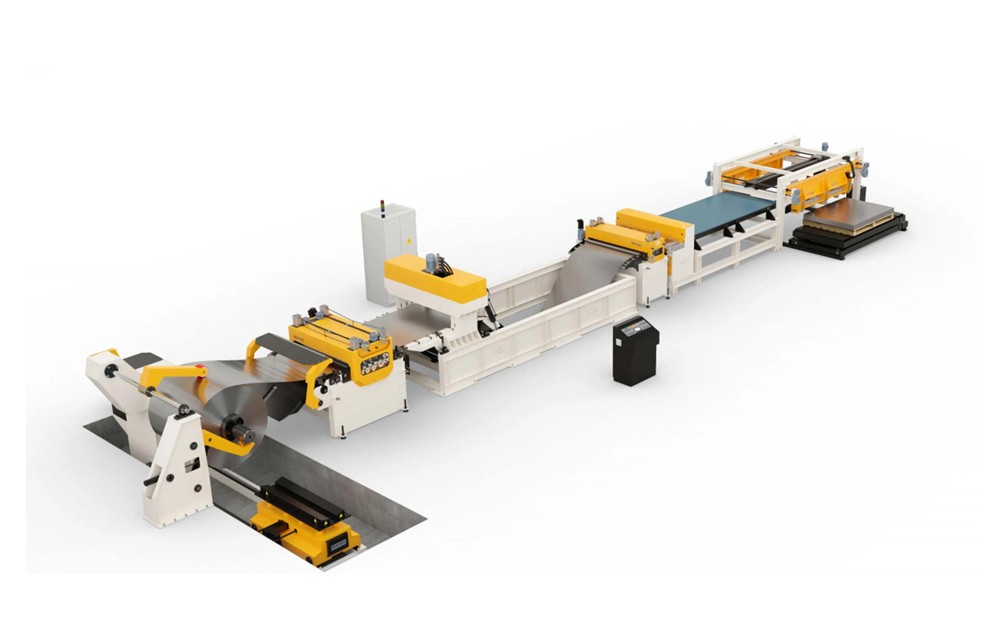

Detailed Photo:

FAQ:

Q1: What information you need to prepare the quotation:

1. Coil thickness (min-max).

2. Coil width (min-max).

3. What kind of your material.

4. Weight of your coils (max).

5. How many tons you need per day or per month.

Q2: Can you make the machine according to my design or photo type?

Yes. We have an experienced engineers to work out the most suitable design and production plan for the machine.

Q3: How can we be assured that you will deliver us quality machine with spare parts?

1. Customers to send the technical people to our factory for checking the quality.

2. We can send the technicians to the buyer`s factory for the installation and training.
