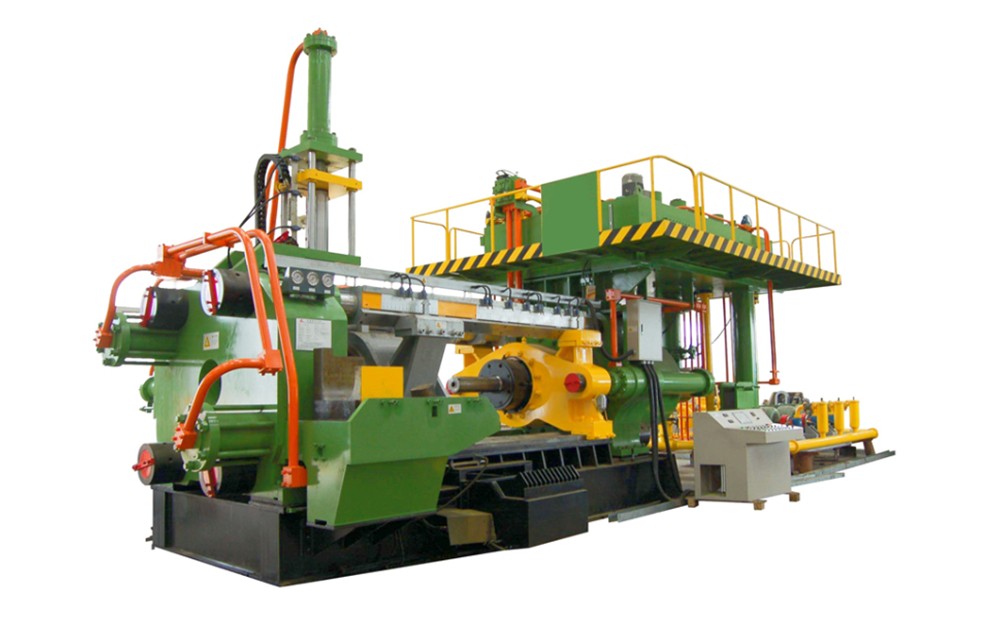

Aluminum Extrusion Machine

Aluminum Extrusion Machine

Aluminum extrusion machine is the most important equipment to realize aluminum extrusion processing…

Share:
Details

Aluminum extrusion machine is the most important equipment to realize aluminum extrusion processing. Metal extrusion processing is an important method using metal plastic pressure forming. Its important feature is that the metal ingots are processed into tubes, rods, and profiles at a time. We have rich experience in the machine design and production. Our machines have many applications, including Building, aerospace, railway and so on.

Features:

1.Fully automatic control, easy operation, easy maintenance,

2.Stable and high production

3.High quality and good after-sale

Model Working pressure
(Mpa)
Extrusion Force
(T)
Backward Force
(T)
Locking Force
(T)
Speed of Press
(mm/s)
Power of Motors
(KW)
Power of Heating
(kw)
Dimension
(m)
XJ550 21 Main:560
Side:25
25 50 0.3-11 45 12 6*2.3*2.5
XJ630 21 Main:633
Side:51.5
16 51 8.8 55 18 7*2.8*3.2
XJ650 21 Main:633
Side:51.5
16 51 8.8 55 18 7*2.8*3.2
XJ850 21 Main:854
Side:65
32 63 0.3-13 55 1.3*15 7.5*3.9*3.7
XJ1000 21 Main:942
Side:84
32 63 0.3-13 55*2 1.3*15 7.8*3.9*3.7
XJ1350 21 Main:1250
Side:101
58 34 0.3-11 55*3 24 9.5*3.3*3.5
